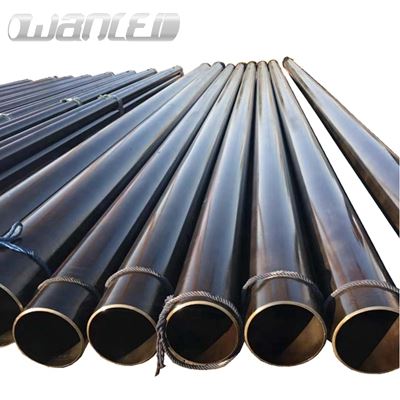

JIS G3455 Carbon Steel Pipes For High Pressure Service
The carbon seamless steel pipes in JIS G3455 specification used for high pressure service at temperatures 350℃ or lower. This standard is generally applicable to pipes of outside diameters 10.5mm to 660.4mm. Seamless steel pipes are the fast selling goods in our company. Welcome to view our website!
Description
Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of jis g3455 carbon steel pipes for high pressure service in China, featured by quality products and low price. If you're going to wholesale durable jis g3455 carbon steel pipes for high pressure service made in China, welcome to get pricelist and free sample from our factory.
JIS G3455 Carbon Steel Pipes For High Pressure Service
Pipes under JIS G3455 standard shall be manufactured from killed steel by the seamless and be given the heat treatment finally subject to agreement between the purchaser and the manufacturer. Pipes are classified into three grades and designation of symbol. STS370, STS410,STS480. Pipes of STS370 and STS410 grade are manufactured by hot finishing for low temperature annealing or normalizing as necessary, and must be annealed and normalized by cold finishing.
Chemical composition %
Grade | C | Si | Mn | P | S |
STS370 | 0.25 max | 0.10-0.35 | 0.30-1.10 | 0.035 max | 0.035 max |
STS410 | 0.30 max | 0.10-0.35 | 0.30-1.40 | 0.035 max | 0.035 max |
STS480 | 0.33 max | 0.10-0.35 | 0.30-1.50 | 0.035 max | 0.035 max |
Mechanical properties of JIS G3455 carbon steel pipes for high pressure service
For pipes of outside diameter under 40mm, the elongation given in this table shall not apply, however, the test result shall be recorded. The elongation value may be specified upon agreement between the purchaser and the manufacturer.
Grade | Tensile strength | Yield strength | Elongation | |
parallel to the pipe axis | perpendicular to the pipe axis | |||
STS370 | ≥370 MPa | ≥215 MPa | ≥30% | ≥25% |
STS410 | ≥410 MPa | ≥245 MPa | ≥25% | ≥20% |
STS480 | ≥480 MPa | ≥275 MPa | ≥25% | ≥20% |
Minimum elongation values taken from pipes under 8mm in wall thickness.
Grade | Minimum Elongation Values in Below Wall Thickness % | ||||||
1-2mm | 2-3mm | 3-4mm | 4-5mm | 5-6mm | 4-7mm | 7-8mm | |
STS370 | 21 | 22 | 24 | 26 | 27 | 28 | 30 |
STS410 | 16 | 18 | 19 | 20 | 22 | 24 | 25 |
STS480 | 16 | 18 | 19 | 20 | 22 | 24 | 25 |
Tolerances on outside diameter and wall thickness
Finishing Method | Tolerance on Out Diameter | Tolerance on Wall Thickness | Wall Thickness Deviation | ||
Hot-finished | Under 50mm | +/-0.5mm | Under 4mm 4mm or over | +/-0.5mm +/-12.5% | 20% or under |
50-Excl 160mm | +/-1% | ||||
160-excl 200mm | +/-1.6mm | ||||
200mm or over | +/-0.8% | ||||
Cold-finished | Under 40mm | +/-0.3mm | Under 2mm 2mm or over | +/-0.2mm +/-10% | - |
40mm or over | +/-0.8% | ||||
Note: The wall thickness deviation is expressed by the ratio in percentage of the difference between the maximum and minimum wall thickness measured on the same cross-section of the pipe to the wall thickness value specified in the order. The wall thickness deviation tolerance does not apply to pipes under 5.6mm in wall thickness.
