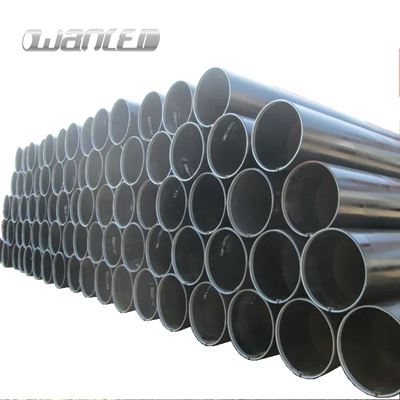

ASTM A672 Electric Fusion Welded Steel Pipe

Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of astm a672 electric fusion welded steel pipe in China, featured by quality products and low price. If you're going to wholesale durable astm a672 electric fusion welded steel pipe made in China, welcome to get pricelist and free sample from our factory.

ASTM A672 Electric Fusion Welded Steel Pipe

Electric fusion welded steel pipe in ASTM A672 standard is suitable for high pressure service at moderate temperatures. This specification covers pipe 400mm in outside diameter or larger with wall thickness up to 75mm.

Production process

Electric fusion welded steel pipe is manufactured from pressure vessel quality plate and filled with metal added. The welds shall be made either manually or automatically by electric process involving the deposition of filler metal. The joints shall be double welded, full-penetration welds. The welded joint has positive reinforcement at the center of each side of the weld, but not more than 3.2mm. We will remove the reinforcement else as per client’s requested.

Materials of ASTM A672 EFW

A45, A50, A55 plain carbon steel as per ASTM A285

B60, B65, B70 plain carbon and killed steel as per ASTM A515

C55, C60, C65, C70 plain carbon, killed steel and fine grain as per ASTM A516

D70, D80 manganese-silicon steel as per ASTM A537

H75, H80 manganese-molybdenum steel as per ASTM A302

J80, J90, J100 manganese-molybdenum steel as per ASTM A533

L65, L70, L75 molybdenum steel as per ASTM A204

N75 manganese-silicon steel as per ASTM A299

Classes of ASTM A672 EFW

CL10,CL11,CL12,CL13

CL20,CL21,CL22,CL23

CL30,CL31,CL32,CL33

CL40,CL41,CL42,CL43

CL50,CL51,CL52,CL53 as per ASTM A672 standard Note 1.

Allowable tolerance in outside diameter

Outside diameter based on circumferential measurement +/-0.5% of the specified. Difference between major and minor outside diameters is 1%.

Allowable tolerance in wall thickness

The minimum wall thickness at any point in the pipe shall not more than 0.3mm under the specified nominal thickness.

Allowable tolerance on lengths

Lengths with unmachined ends shall be within 0-13mm of that specified. Lengths with machined ends shall be as agree upon between the manufacturer and the purchaser.

Test

Chemical analysis, Mechanical properties, Charpy V-Notch test, Hardness test, Radiographic examination,Hydrostatic test
