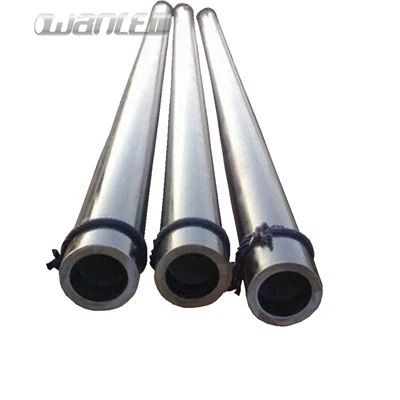

EN10208 Class A Pipeline Steel Pipes For Combustible Fluids
EN10208-1 applies to carbon steel pipelines made by seamless or welded processing. These pipe intends for conveying combustible fluids as well as water piping in the oil and gas industries, and has L210GA, L235GA, L245GA, L290GA , L360GA five steel designation.
Description
Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of en10208 class a pipeline steel pipes for combustible fluids in China, featured by quality products and low price. If you're going to wholesale durable en10208 class a pipeline steel pipes for combustible fluids made in China, welcome to get pricelist and free sample from our factory.
The generating background of EN10208-1
EN10208 standard specified the technical delivery conditions of pipeline steel tube is derived from Europe. In the preparation of this European standard the committee was unanimous in seeking to avoid specifying the quality of line pipe to be used for a particular application. There are several broad quality levels commonly used. Then, they provide a basic quality level broadly similar to that specified in main part of ANSI/API 5L [2]. This is designated quality level A, and considered in this EN 10208-1.
Scope of EN10208-1
EN10208-1 applies to unalloyed seamless and welded steel pipelines for transmitting combustible fluids and water piping in the oil and gas industries. The rang of outside diameter is from 33.7mm to 1626mm.
Applicable types of pipes and welds
1. seamless pipe (S)
2. Electric welded pipe (EW)
3. Continuous welded pipe (BW)
4. Submerged arc welded pipe(SAW)
5. Combination gas metal arc and submerged arc welded pipe(COW)
Manufacturing process
Type of pipe | Pipe forming | Heat treatment condition |
S | Hot rolling | As rolled |
Normalized or normalizing formed | ||
Quenched and tempered | ||
Hot rolling and cold finishing | Normalized | |
Quenched and tempered | ||
EW | Cold forming | Stress relieved |
Normalized | ||
Heat treated | ||
Cold forming and cold finishing | Normalized | |
Cold forming and hot stretch reducing | Normalized | |
SAW and COW | Cold forming and normalizing forming | |
BW | Hot forming | As welded; normalized if necessary |
Chemical composition maximum %
Steel grade | C | Si | Mn | P | S |
L210GA | 0.21 | 0.40 | 0.90 | 0.03 | 0.03 |
L235GA | 0.16 | 0.40 | 1.20 | 0.03 | 0.03 |
L245GA | 0.20 | 0.40 | 1.15 | 0.03 | 0.03 |
L290GA | 0.20 | 0.40 | 1.40 | 0.03 | 0.03 |
L360GA | 0.22 | 0.55 | 1.45 | 0.03 | 0.03 |
Mechanical properties
Steel grade | Yield strength min | Tensile strength min | Elongation min |
L210GA | 210Mpa | 335-475Mpa | 25% |
L235GA | 235Mpa | 370-510Mpa | 23% |
L245GA | 245Mpa | 415-555Mpa | 22% |
L290GA | 290Mpa | 415-555Mpa | 21% |
L360GA | 360Mpa | 460-620Mpa | 20% |
Examinations
1. Chemical analysis (cast and product analysis)
2. Tensile test
3. Bend test
4. Flattening test
5. Macrographic and metallographic examination
6. Visual examination
7. Dimensional testing
8. Hydrostatic test
Coating for temporary protection
Unless otherwise ordered we will deliver the pipes with an external coating to protect it from rusting in transit.
