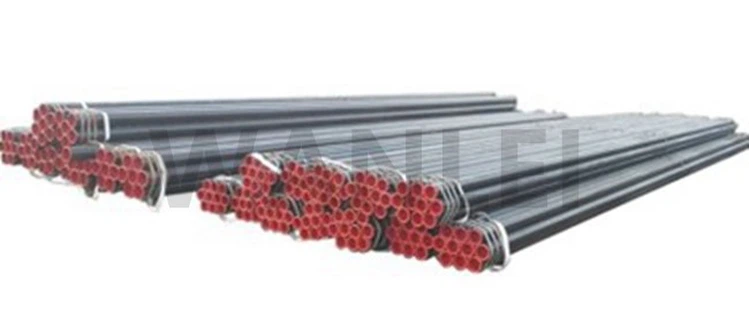

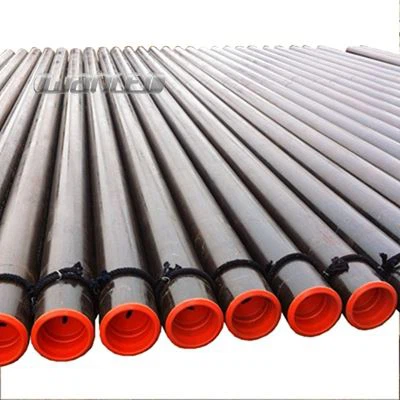

Low Temperature Steel Pipe

Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of low temperature steel pipe in China, featured by quality products and low price. If you're going to wholesale durable low temperature steel pipe made in China, welcome to get pricelist and free sample from our factory.





Low Temperature Steel Pipe



Standard: ASTM A333 seamless and welded steel pipe for low temperature

                 JIS G3460 steel pipes for low temperature service

Pipe grade: ASTM A333 Gr.6, JIS G3460 STPL450

Size range: 1/2” to 36”

Wall thickness: sch10, sch20, sch30, schstd, sch40, sch60, schxs, sch80, sch100, sch120, sch140, sch160, schxxs

Length: single random, double random, specified length, custom size between 5.8 meters length and 12.5meters

Type: seamless/ERW/welded

Ends protection: Plastic caps, metal protectors.

Coating: black painting, anti-corrosion oil, galvanized finish, finish as per clients’ requirements

Packing: below 6" in bundles and above 6" in loose then loaded into containers. 6" and above ends wound cotton rope.

Applications: oil refineries, petrochemicals, power generation (Nuclear/Thermal), steel, sugar, boiler equipment, pressure vessels and general engineering purposes.

Chemical composition

Standard	Grade	C	Si	Mn	P	S
ASTM A333	6	≤0.30	≥0.10	0.29-1.06	≤0.025	≤0.025
JIS G3460	STPL450	≤0.18	0.10-0.35	0.30-0.60	≤0.030	≤0.030



Mechanical properties

Standard	Grade	Tensile strength	Yield strength	Elongation
ASTM A333	6	≥415MPa	≥240MPa	≥30%
JIS G3460	STPL450	≥450MPa	≥245MPa	≥30%



Additional product marking

In addition to the marking prescribed in Specification A530/A530M, the marking shall include whether hot finished, cold drawn, seamless or welded, the schedule number and the letters “LT” followed by the temperature at which the impact tests were made. When the size of the finished pipes is insufficient to obtain sub size impact specimens, the marking shall not include the letters LT followed by an indicated test temperature. Moreover, if the pipe is furnished in the quenched and tempered condition, the marking will stamp the letters”QT”.





Our advantages and certifications

a. A full array of products can be made available on a short notice, to help you keep on operating without interruption.

b. Our highly trained staff can provide good quality products and services which meet your requests for your existing operation.

c. We are a company who at its core believes in understanding client’s demand, providing them with output so robust.

d. We have received the certifications which are required to do business on domestic as well as the global stage. Along with the necessary ISO certifications we also have the API certificate.
