15CrMoG High Pressure Alloy Steel Pipes

Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of 15crmog high pressure alloy steel pipes in China, featured by quality products and low price. If you're going to wholesale durable 15crmog high pressure alloy steel pipes made in China, welcome to get pricelist and free sample from our factory.



Introduction

15CrMoG is a steel grade belonging to the GB/T 5310 standard. 15CrMoG high pressure alloy pipes have the characteristic of excellent heat resistance and oxidation resistance, etc. It has high heat resistance when used at a temperature of 500℃-550℃. But when the working temperature is more than 550℃, its heat resistance is significantly reduced. So it is suitable for manufacturing of high-temperature boiler tubes.

The equivalent grades of 15CrMoG include ASTM A213 T12, ASTM A335 P12, JIS STBA22, JIS STPA22, and DIN13CrMo44, etc.



Specification

Product name	15CrMoG High Pressure Alloy Steel Pipe
Place of origin	China
Standard	GB/T 5310
Material grade	15CrMoG
Equivalent grades	ASTM: T12 P12
	JIS: STBA22 STPA22
	DIN: 13CrMo44
Technique	Hot rolled or Cold drawn
Outer diameter	21.3mm-914.4mm or as per clients' requirements
Wall thickness	3mm-60mm
Length	3m-12m or customized length
Pipe ends	Plain ends, Bevel ends, etc.
Delivery condition	Heat treatment



Chemical composition %

Grade	C	Mn	Si	Cr	Mo
15CrMoG	0.12-0.18	0.40-0.70	0.17-0.37	0.80-1.10	0.40-0.55



Mechanical properties

Grade	Tensile strength(Mpa)	Yield strength,min(Mpa)	Elongation,min(%)	Impact(KV2) J	Hardness(HBW)
15CrMoG	440-640	295	21	40	125-195



Heat treatment

15CrMoG high pressure alloy pipes should be heat treated before delivery, for the steel pipe that the wall thickness is below 30mm: Normalize (900℃-960℃) and Tempering (680℃-730℃) ; for the steel pipe that the wall thickness is over 30mm: Quenching (>900℃) and Tempering (680℃-750℃).

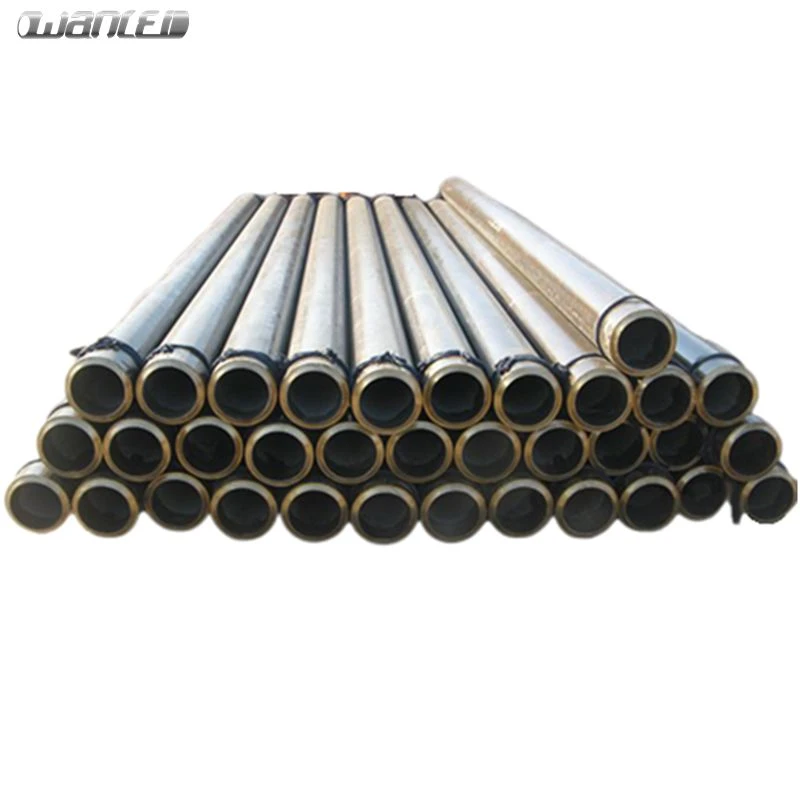

Product show

In addition to 15CrMoG alloy steel pipes, we can also provide GB/T 5310 alloy steel pipes of other grades to clients, such as 20G, 20MnG, 15MoG, 15CrMoG, etc.



Applications

1. Petrochemical field: 15CrMoG alloy steel pipes are usually used for manufacturing of high-temperature boiler tubes. Due to its good high-temperature resistance and oxidation resistance, it can maintain stable operation in high-temperature and high-pressure environments.

2. Power plant: 15CrMoG alloy steel pipes is a key material to manufacture superheater pipeline and reheater due to its good corrosion resistance and high-temperature resistance.



Our advantages

1. Large inventory: We have large inventory to meet your needs, different types of steel pipes are available in stock.

2. Fast delivery: After receiving your detailed order, we can rapidly prepare the goods from stock or pick them up from other factories. The goods will be shipped in a short time, and the delivery is very fast.

3. High quality and Best price: Our steel pipes mainly come from other well-known factories, the quality is very high, and our price is competitive.
