ASME B16.9 45DEG Lateral Tee
45deg lateral tee is a common connection fitting, its structural feature is that the main pipe and branch form 45deg angle. The main function of 45deg lateral tee is to achieve fluid diversion. We can provide 45deg lateral tees that the dimensions within 1/2” to 48”. Welcome to your purchase.
Description
Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of asme b16.9 45deg lateral tee in China, featured by quality products and low price. If you're going to wholesale durable asme b16.9 45deg lateral tee made in China, welcome to get pricelist and free sample from our factory.
Product Introduction
The main function of 45deg lateral tee is to achieve fluid diversion. In pipeline systems, it is sometimes necessary to guide fluid from the main pipeline to the branch pipeline while maintaining smooth flow. 45deg lateral tees can effectively reduce the impact and resistance of fluid, making the fluid smoother when turning, thereby reducing energy loss.
We can provide 45deg lateral tees made of carbon steel and stainless steel material, and they are available in multiple dimensions. The dimensions of 45deg lateral tees is within 1/2" to 48".
Specifications
| Product name | 45Deg Butt Welded Lateral Tee |
| Place of origin | China |
| Dimension standard | ASME B16.9 |
| Material grades | Carbon steel: ASTM A234 WPB, Q235 |
| Stainless steel: ASTM A403 WP304 304L 316 316L, etc. | |
| Type | Reducing tee and Straight tee |
| Angle | 45deg |
| Size | 1/2" to 48" |
| Wall thickness | SCH5S, SCH10S, SCH20, SCH30, SCH40, STD, SCH60, SCH80, XS, SCH100, SCH120, SCH140, SCH160, XXS |
Dimension Table of Lateral Tee
|
Nominal Pipe Size |
Outside diameter at bevel |
Center to end |
||
|
DN |
NPS |
OD(mm) |
X and Y |
Z |
|
15 |
1/2 |
21.3 |
90 |
50 |
|
20 |
3/4 |
26.7 |
108 |
50 |
|
25 |
1 |
33.4 |
146 |
50 |
|
32 |
1-1/4 |
42.2 |
159 |
57 |
|
40 |
1-1/2 |
48.3 |
178 |
64 |
|
50 |
2 |
60.3 |
203 |
64 |
|
65 |
2-1/2 |
73 |
241 |
64 |
|
80 |
3 |
88.9 |
254 |
76 |
|
90 |
3-1/2 |
101.6 |
292 |
76 |
|
100 |
4 |
114.3 |
305 |
76 |
|
125 |
5 |
141.3 |
343 |
89 |
|
150 |
6 |
168.3 |
368 |
89 |
|
200 |
8 |
219.1 |
445 |
114 |
|
250 |
10 |
273 |
521 |
127 |
|
300 |
12 |
323.9 |
622 |
140 |
|
350 |
14 |
355.6 |
686 |
152 |
|
400 |
16 |
406.4 |
762 |
165 |
|
450 |
18 |
457 |
813 |
178 |
|
500 |
20 |
508 |
889 |
203 |
|
550 |
22 |
559 |
959 |
216 |
|
600 |
24 |
610 |
1029 |
229 |
|
650 |
26 |
660 |
1308 |
267 |
|
700 |
28 |
711 |
1442 |
286 |
|
750 |
30 |
762 |
1524 |
299 |
|
800 |
32 |
813 |
1626 |
311 |
|
850 |
34 |
864 |
1727 |
330 |
|
900 |
36 |
914 |
1829 |
350 |
|
950 |
38 |
965 |
1930 |
483 |
|
1000 |
40 |
1016 |
2032 |
508 |
|
1050 |
42 |
1067 |
2134 |
533 |
|
1100 |
44 |
1118 |
2235 |
559 |
|
1150 |
46 |
1168 |
2337 |
584 |
|
1200 |
48 |
1219 |
2438 |
610 |
|
1250 |
50 |
1270 |
2540 |
635 |
|
1300 |
52 |
1321 |
2642 |
660 |
|
1350 |
54 |
1372 |
2743 |
686 |
|
1400 |
56 |
1422 |
2845 |
711 |
|
1450 |
58 |
1473 |
2946 |
737 |
|
1500 |
60 |
1524 |
3048 |
762 |

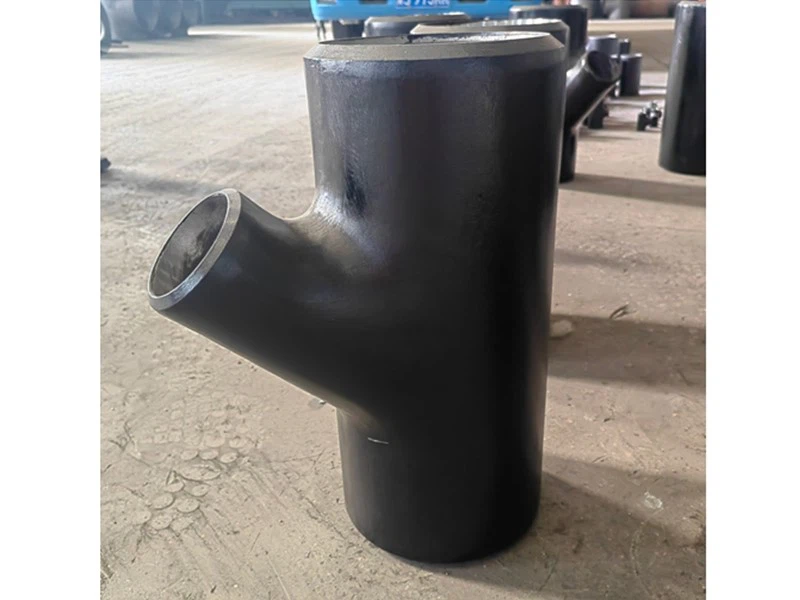

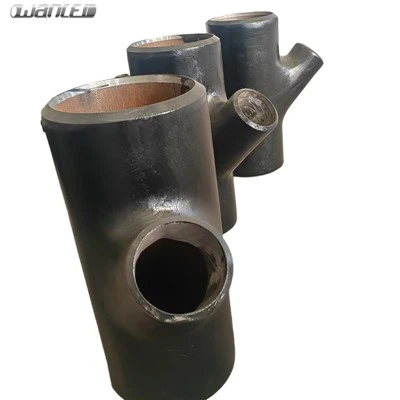

Product Show
We can provide 45deg lateral tees made of carbon steel and stainless steel materials. If you have other requirements, please send the detailed data to us, we will customize the product you need.
Packing
In order to prevent pipe fittings from damage, 45deg lateral tees will be wrapped with woven bags or plastic films, and then putted into plywood cases for protection.
Our Advantages
01
Fast Delivery
Fast delivery is our greatest advantage. We are able to rapidly pick up the pipe fittings from well-known factories. The delivery is very fast.
02
High Quality
Our pipe fittings come from top manufacturers and suppliers in China. "Quality First" is our service tenet.
03
Small Order
Small and trial orders can be accepted, which can save your valuable time.
04
Custom Service
45deg lateral tees are available in multiple dimensions. If you have other requirements, please send the detailed data to us, we will customize the product you need.
