API 5L X52 PSL1 Line Pipe

API 5L X52 PSL1 carbon steel pipe pressure rating (Mechanical Strength) for seamless and ERW, LSAW types.

Send Inquiry

Description

API 5L X52 PSL1 line pipe

Explain of API 5L X52 PSL1 line pipe

API 5L X52 pipe is also L360 pipe (Line Pipe in 360 Mpa yield strength). It is a medium grade in the API 5L specifications, used for the oil and gas transportation systems in the pipeline systems.

Advantage of API 5L X52 PSL1 line pipe

The API 5L x52 steel pipe's resistance to corrosion is really high, which makes them very well suited to sour service.

Details of API 5L X52 PSL1 line pipe

API 5L X52 carbon steel tubes,API 5L X52 PSL 1 seamless steel tube,API 5L X52 PSL 1 seamless steel pipes,API 5L X 52 welded Pipes,API 5L X 52 ERW Pipes, API 5L X52 Pipeline

Size:1/2” to 36”

Wall thickness :Schedule 10 to Schedule XXS

Length range: DRL or fixed length

Manufacturing methods:Seamless,ERW,SAW

Packing:Wooden case, plastic bags, steel strips bundled or as per Customers Requests.

Chemical composition:%

C (max)	Mn (max)	P (max)	S (max)	V	Nb	Ti
0.28	1.40	0.030	0.030	Nb+V+Ti≤0.15%

Note:For each reduction of 0.01% below the specified maximum for C, an increase of 0.05% above the specified maximum for Mn is permissible, up to a maximum of 1.65% for grades ≥ L245 or B, but ≤ L360 or X52

Mechanical property:

Grade	Yield strength(Mpa)	Tensile strength(Mpa)
X52	≥360	≥460

Surface treatment of API 5L X52 PSL1 line pipe

The surface of API 5L X52 ERW steel tube can be coated with anticorrosive oil, varnish, black paint, etc. These coatings can ensure that API 5L X52 equivalent material pipe is not corroded.

Or through galvanized API 5L X52m pipeline, also can prevent rust corrosion.

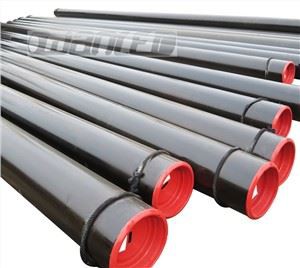

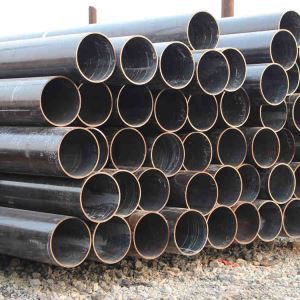

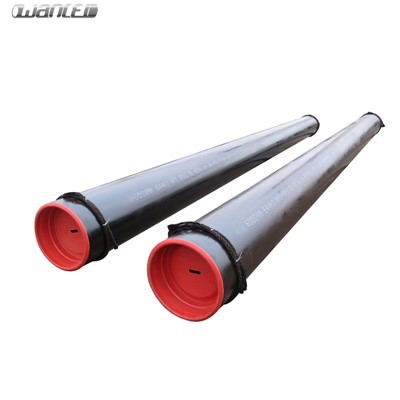

Photo show of API 5L X52 PSL1 line pipe
