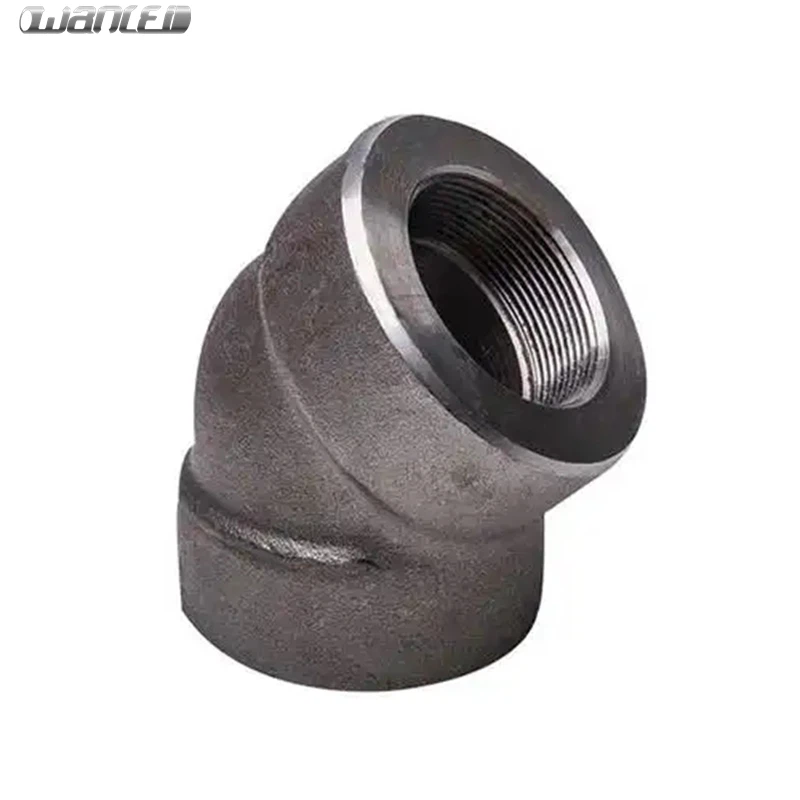

45DEG 90DEG NPT Threaded Elbow Pipe Fitting
Threaded elbow is a type of pipe fitting with internal threads at both ends. There are threaded grooves on both ends for connection with the pipeline. The standard for threads usually use NPT standard. We can provide high quality 45deg and 90deg threaded elbow to clients. Welcome to your purchase.
Description
Tianjin Wanlei Steel Pipe Co., Ltd. is one of the leading manufacturers and suppliers of 45deg 90deg npt threaded elbow pipe fitting in China, featured by quality products and low price. If you're going to wholesale durable 45deg 90deg npt threaded elbow pipe fitting made in China, welcome to get pricelist and free sample from our factory.
Key features of Threaded Elbow
1. Precision threads and strong connection: The internal threads of our elbows are manufactured according to NPT standard. The characteristics of NPT threads are their unique triangular profile and exhibit a taper of 1°47' (a taper of 62.5mm/m relative to the axis). This design not only improves the sealing performance of threaded elbows but also simplify installation process.
2. Leak-proof: The precision threads and secure connection create a leak-proof seal that reduces the risk of leakage.
Easy installation and disassemble: The connection between threaded elbow and the pipeline is achieved through the internal threads at both ends. It is easy to install and disassemble.
3. Material diversity: Multiple materials are available, such as high quality carbon steel, stainless steel with strong corrosion resistance, and high strength low alloy steel, etc.
Specifications
|
Product name |
45DEG 90DEG NPT Threaded Elbows |
|
Place of origin |
China |
|
Standard |
ASME B16.11 |
|
Standard for threads |
NPT standard |
|
Material |
Carbon steel: ASTM A105/A105N |
|
Stainless steel: ASTM A182 F304 F304L F316 F316L |
|
|
Alloy steel: ASTM A182 F1 F2 F5 F9 F22, etc. |
|
|
Type |
45deg and 90deg elbow |
|
Size |
1/8"-4" |
|
Class |
2000LB, 3000LB, 6000LB |
|
Connection method |
Threaded |
Specification of NPT standard Thread
|
NPT-American Standard Pipe Thread Taper |
|||
|
Elbow size (inch) |
Threads per inch |
Pitch of screw (mm) |
Thread height (mm) |
| 1/8 | 27 | 3/8 | 0.752 |
| 1/4 | 18 | 5/8 | 1.129 |
| 3/8 | 18 | 5/8 | 1.129 |
| 1/2 | 14 | 3/4 | 1.451 |
| 3/4 | 14 | 3/4 | 1.451 |
| 1 | 11.5 | 7/8 | 1.767 |
| 1-1/4 | 11.5 | 1 | 1.767 |
| 1-1/2 | 11.5 | 1 | 1.767 |
| 2 | 11.5 | 1 | 1.767 |
| 2-1/2 | 8 | 1-1/2 | 2.540 |
| 3 | 8 | 1-1/2 | 2.540 |
| 3-1/2 | 8 | 1-5/8 | 2.540 |
| 4 | 8 | 1-5/8 | 2.540 |
Product show
45deg and 90deg threaded elbows can be offered by us. We can also provide 60deg non-standard angle elbow according to specific application needs.
Packing
In order to prevent pipe fitting from damage, pipe fittings will be wrapped with woven bags or plastic films, and then put into the wooden cases for protection. We can also package according to clients' requirements.
Our advantages
1. Fast delivery: We understand the importance of timely delivery and ensure that our products reach our customers on time.
2. Large inventory: We have sufficient inventory and can rapidly pick up the goods from other well-known factories. The delivery is very fast.
3. Threaded elbows are available in various sizes.
4. Service in place: We will do our best to meet clients' requirements. Customer first is our service tenet.
