What is socket welded pipe fittings?

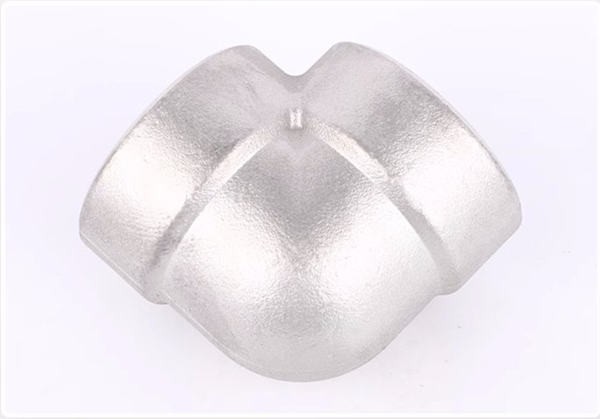

Socket welded pipe fittings are pipeline components that are connected through socket welding. Its design is very unique: there is an enlarged groove inside the port of the pipe (called a "socket" or "bell mouth"). During installation, insert the outer wall of the pipeline directly into this groove, and then weld a circle of fillet welds around the periphery of the port to achieve permanent connection.
Main Features
Advantages
Easy installation and good alignment
The pipeline automatically centers after insertion, making it easier to assemble and fix than butt welding, especially suitable for on-site installation.
Reliable structural strength
After welding, it can withstand high pressure and load, with excellent sealing performance, far superior to threaded connections.
Suitable for small-diameter pipelines
In pipelines with a nominal diameter of DN50 (2 inches) and below, it is a more compact and economical reliable choice than flange connections.
Space saving
The structure is very compact, without the need for flanges and bolts.
Disadvantages and limitations
Stress concentration and poor fatigue resistance
Stress concentration and poor fatigue resistance are its biggest weaknesses. There is stress concentration at the root of the "steps" and fillet welds between pipelines and fittings, which can easily lead to fatigue cracks under conditions of severe temperature changes or mechanical vibrations.
01
Difficulty in weld quality inspection
The root of the internal weld cannot be effectively inspected with X-rays and can only rely on external inspection, resulting in quality blind spots.
02
There is a risk of crevice corrosion
There is a small annular gap between the outer wall of the pipeline and the inner wall of the pipe fitting, which is prone to crevice corrosion for corrosive media such as chloride ions.
03
Non removable
Once welded, it becomes a permanent connection.
04
Not applicable to high-definition cleanliness systems
The above-mentioned small gaps may harbor dirt and grime, and are not suitable for systems such as food, pharmaceuticals, and high-purity gases.
05
Key differences from butt welding and threaded pipe fittings
|
feature |
Socket Weld Fittings |
butt-welded pipe fittings |
threaded pipe fittings |
|
connection principle |
Peripheral fillet welding after pipe insertion |
Butt welding of pipe and pipe fitting grooves |
Through thread engagement |
|
Strength and fatigue resistance |
Medium, stress concentration |
"The highest, with continuous structure" |
The lowest, prone to failure at the thread |
|
sealing performance |
excellent |
excellent |
Generally, it relies on sealing materials |
|
Detachability |
non-removable |
non-removable |
detachable |
|
Installation convenience |
Relatively simple (easy to align) |
Relatively complex (requiring precise alignment) |
the simplest |
|
Non-destructive testing |
Difficult (unable to RT) |
Easy (RT/UT possible) |
Not applicable |
|
Applicable caliber |
Small diameter (≤DN50) |
full caliber |
small caliber |
|
cost |
The cost of pipe fittings is high, while the installation cost is low |
The cost of pipe fittings is low, while the cost of installation/inspection is high |
The lowest comprehensive cost |
Summary
We are able to provide high quality socket welded pipe fittings according to customers' needs and look forward to your purchase.
