Introduction to the Manufacturing Process of Seamless Pipes
The manufacturing process of seamless steel pipes is the core reason for their outstanding performance. The following is an introduction to the production process of seamless pipes. The core characteristic of seamless pipe is its seamless construction throughout, so its production processes are designed around transforming solid steel billets into hollow tubing. These processes fall into two main categories: hot rolling (hot extrusion) and cold drawing (cold rolling).
Hot-Rolled (Hot-Extruded) Seamless Pipe Process
Primarily used for producing large-diameter, thick-walled pipes, it is the most common method for manufacturing seamless pipes.
| Core Steps | Billet Preparation and Heating |
| Piercing | |
| Tube Rolling (Drawing) | |
| Sizing and Reducing | |
| Cooling, Straightening, and Cutting |
Cold-drawn (Cold-rolled) Seamless Pipe Process
Primarily used for producing small-diameter, thin-walled precision seamless tubes with high dimensional accuracy and surface finish. Hot-rolled tubes are typically employed as the blank material.
| Core Processes | Blank Preparation |
| Pre-treatment | |
| Cold Drawing | |
| Cold Rolling | |
| Intermediate Heat Treatment | |
| Finishing and Final Heat Treatment |
Process Comparison and Selection
|
Characteristics |
Hot-rolled seamless pipe |
Cold-drawn/Cold-rolled Seamless Tubes |
|
Size range |
Large diameter, thick wall |
Small-bore, thin-walled |
|
Dimensional accuracy |
lower |
Extremely high |
|
Surface quality |
Scaled and relatively rough |
Smooth and shiny |
|
Mechanical Properties |
Low strength, good plasticity |
High strength, can be adjusted through heat treatment |
|
Production Cost |
relatively low |
High (multiple processes, long cycle time, low yield rate) |
|
Primary Applications |
Structural pipe, fluid conveyance pipe, pipeline pipe, boiler tube |
Hydraulic cylinder barrels, bearing sleeves, precision mechanical components, automotive piping |
Quality Control and Testing
The seamless pipe production process involves strict quality control points:
| Non-Destructive Testing (NDT) | 100% ultrasonic testing (UT) for internal defects; eddy current testing (ET) for surface and near-surface defects. |
| Physical and Chemical Properties Testing | Sampling from each batch for tensile testing, hardness testing, impact testing (when necessary), and metallographic analysis. |
| Dimensional Accuracy Inspection | Measuring outer diameter, wall thickness, ovality, etc., using calipers, micrometers, laser diameter gauges, etc. |
| Hydrostatic Testing | Conducting pressure tests on pressure-rated pipes to verify sealing integrity and pressure-bearing capacity. |
Summary
The manufacturing of seamless pipes is a complex process that is both capital- and technology-intensive. The hot-rolling process establishes the foundation for the pipes, while cold-drawing/cold-rolling elevates them to a level of high precision and performance. The choice of seamless pipe manufacturing process depends entirely on the operating conditions (pressure, temperature), dimensional accuracy, and cost requirements of the final application. It is precisely these rigorous processes that ensure seamless pipes hold an irreplaceable position in critical fields demanding high pressure, high temperature, and high reliability.

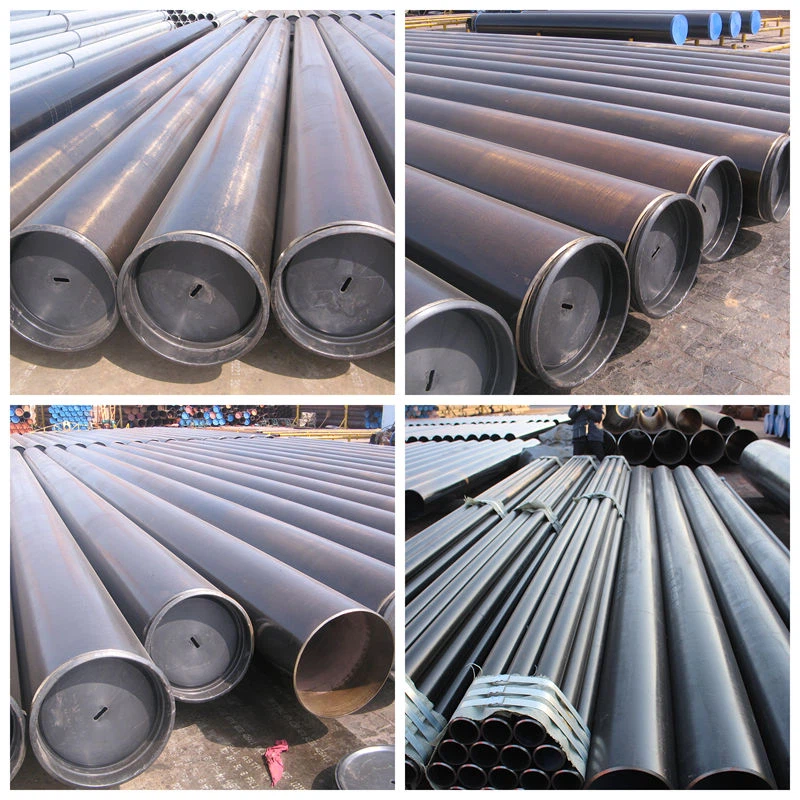

We are able to provide high quality Seamless Steel Pipes according to customers' needs and look forward to your purchase.
